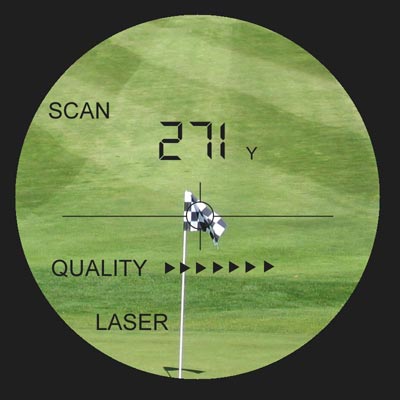

With the JCS602-1000 Laser Rangefinder, simply aim the pin, click the button, and read the yardage from LCD in second. It´s not limited to just the flag, it can get the bunker, water hazard, tree, green and everything on the course in distance at 1 yard accuracy. Read will remain on screen for 10 seconds. The measure rang is from 15 yard to 1530 yard. It weighs only 7 ounces, weather proof and packed with features. Thanks to 7x magnification, the largest 26mm object lens in the market, wide field of view and LCD display, it´s easy to spot the pin. This device features scan function which allow you to automatic measure from spot to spot without bush button.
| |
Specification:
|
|
Optical System
| Magnification |
7x |
| Objective Lens (mm) |
26 |
| Field of view (degree) |
6 |
| Exit pupil (mm) |
3.7 |
| Display |
LCD |
| Lens |
Optical glass |
Laser and Dimension
| Class |
Laser class 1 |
| Wavelength |
905um |
| Maximum Range |
1530 yard (1400 meter) |
| Closed focus |
15 yard (15 meter) |
| Accuracy |
+/- 1 yard (+/- 1 meter) |
| Battery life (times) |
3000 (scan mode remain time up to 60 sec. and use more battery) |
| Battery type |
AAA 1.5V x 2 |
| Weight (without battery) |
7 ounces (200 gram) |
| Dimension |
4.9 x 1.9 x 3.2 inch (124 x 48 x 82 mm) |
Measuring range (according to different target)
| |
Target |
Range (yard) |
Range (meter) |
| A |
Guideboard (max. range distance) |
1530 |
1400 |
| B |
Building |
1000 |
914 |
| C |
Tree |
766 |
700 |
| D |
Flag |
328 |
300 |
|
| |
Accessories:
|
- NovaOptik JCS602-1000 Laser Rangefinder
- Carrying case with belt loop
- Detachable shoulder strap
- Detachable wrist strap
- 2x AAA, 1.5V battery
- Manual
- 1 year manufacture warranty
|
Manufacturer: NovaOptik
MPN: JCS602-1000
SKU: 1001690002
Unit of Measure: 124x48x82
